Slimparker 557 Tower

Projecting skywards: The WÖHR Slimparker 557 Tower is slim and versatile.

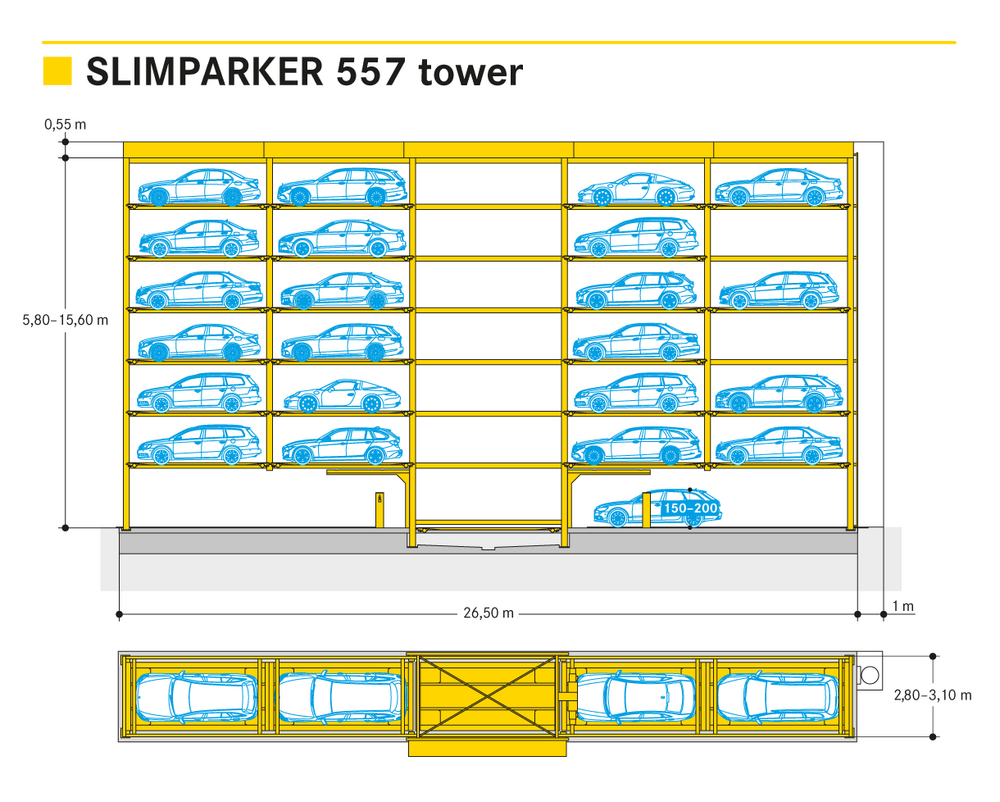

The parking system Slimparker 557 offers up to 23 above-ground parking spaces on narrow and long ground plans. A central vertical lift located in the transfer area conveys the car to one of the 6 possible parking levels per system. Each parking level can store up to 4 cars. The slim construction contours allows incorporation into a soundproof wall. This safeguards the residents of housing areas against adjacent road and rail traffic noise pollution. Narrow gaps can be used for additional car parking spaces.

Specifications

Automatic parking system for up to 23 cars

Platform load 2,000 kg and 2,600 kg

Narrow gaps are perfectly closed

Very small ground plan and very slim construction

No space-intensive ramps and driveways

Slim installation width of only 280 cm, can be extended up to 310 cm in 10 cm steps

Different car heights from 150 - 200 cm can be accommodated

Individual facade design is possible - max. weight of approx. 50 kg per m²

Following the idea of "Green-Parking"
